Straight end
A termination post ends the section. The next disconnected railing area is counted separately.
Cable railing layout guide
Cable Railing Corner & Section Calculator
Map straight runs, corners, stairs, and openings, then calculate the Level Run and Stair Run Kits needed for every cable row.
Interactive calculator
Turn your layout into kit quantities
Select a common plan or enter your own independent level and stair sections. We will calculate one kit for every cable row in every section.
Project layout
A corner, end post, opening, or level-to-stair transition normally starts a new cable section.
Typical 36-inch railings use 10 or 11 rows; typical 42-inch railings use 12 or 13. Confirm the final layout against your required spacing and local code.
Your section plan
Planning quantity for the selected layout and cable row count.
Independent sections
2
Total cable strands
22
Level Run Kits
22
Stair Run Kits
0
2 level sections x 11 rows = 22 Level Run Kits.
Planning estimate only. Structural post design, shared posts, openings, mounting details, cable spacing, and local code can change the final material list.
Count the starts and stops
What counts as a separate cable section?
For ordering, think about where each group of straight, parallel cables begins and ends. Each cable row in that section needs its own matching kit.

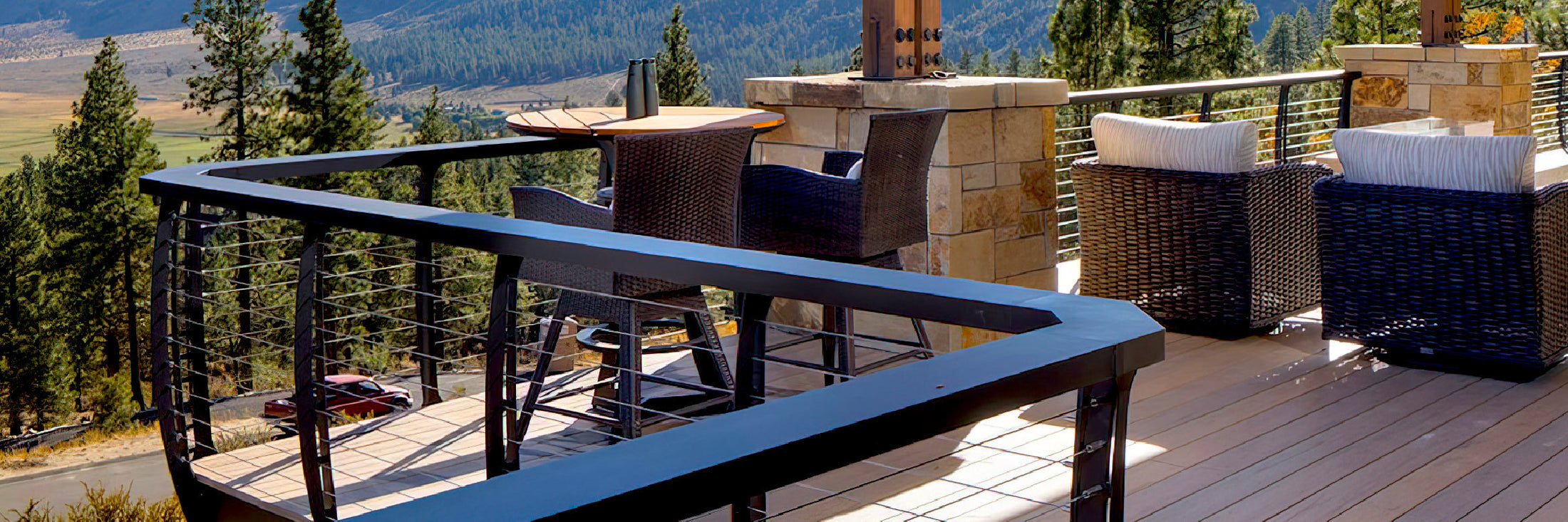

Corner
When the railing changes direction at a corner, count the next side as another independent section.
Level to stair
A stair or ramp uses articulating stair fittings, so the angled portion is separate from the level portion.
Opening
Gates, breaks, and other openings interrupt the cable path and create a new start and stop.
Post planning
Plan corners for your post material
The section-count formula is the same for wood and metal termination posts, but the attachment details and matching kit are different.
Wood post corners
Choose the wood-post version of each level or stair kit. Protectors can help shield wood where cable passes through or changes direction; final drilling and post reinforcement depend on the project.
- Use level kits for horizontal sections.
- Use stair kits for angled stair or ramp sections.
- Confirm the cable path before drilling corner posts.
Metal post corners
Choose the metal-post version of each kit. Corner posts can carry cable attachments from more than one direction, so hole placement and available thread engagement must be planned together.
- Keep each direction in its own section count.
- Match level and articulating fittings to the run type.
- Review the complete post and fitting layout before ordering.
From sketch to order
A six-step corner planning workflow
A simple marked-up plan is enough to turn a complicated perimeter into countable sections.
Draw the perimeter
Mark every railing edge, opening, stair, and ramp on a top-down sketch.
Mark each change
Place a break at corners, end posts, openings, and level-to-stair transitions.
Label run types
Identify each independent section as level or stair/ramp.
Choose cable rows
Base the final count on railing height, required spacing, and your approved design.
Multiply sections
Multiply level and stair section counts separately by the number of cable rows.
Verify the details
Check post material, attachment type, cable lengths, and structural requirements before ordering.
Questions
Cable railing corner FAQs
Does a cable railing corner start a new section?
Yes. For kit planning, each turn at a corner ends one straight cable section and begins another. Count both sides independently.
How many kits do I need per section?
You need one matching kit for every cable row in every independent section. For example, two level sections with 11 cable rows require 22 Level Run Kits.
Is a stair section counted separately from the deck?
Yes. The level portion uses Level Run Kits and the angled stair or ramp portion uses Stair Run Kits with articulating fittings.
Can one corner post serve two railing directions?
A shared corner post may be part of the structural layout, but the cable on each direction is still counted as a separate section. Confirm the post, hole, and fitting arrangement before ordering.
Does this calculator determine code compliance?
No. It estimates kit quantities from the section and cable-row counts you enter. Your local code, structural design, post spacing, cable spacing, and mounting conditions govern the final railing plan.
