Cable Railing for Wood Posts: Planning and Installation Guide
Choose level or stair fittings, calculate cable run kits, compare lag screw options, and plan a clean cable railing installation for wood posts.
Count the kits for each railing section
Each kit supplies the fittings and one pre-cut cable strand for one cable row. Count every independent end-to-end section separately, then multiply by its cable rows.
Level Run Kit for Wood Posts
For one level section with 11 cable rows.
Our standard choice for attaching directly to a typical 4x4 wood post or larger.
Planning quantity only. Measure every cable section and choose the appropriate available pre-cut cable length on the product page. Confirm structural attachment and code requirements for the project location.

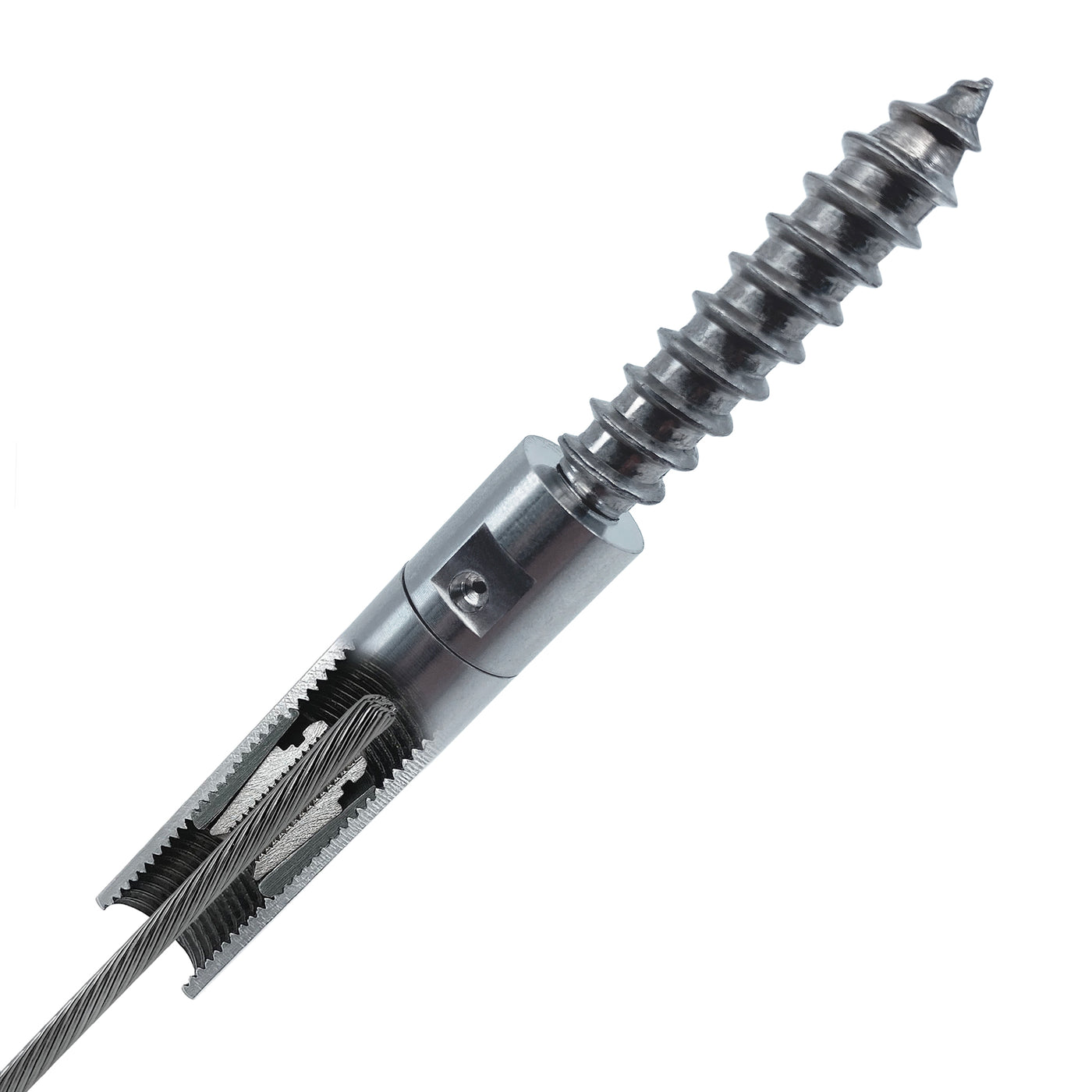

A direct connection without swaging
Our wood-post fittings combine an adjustable swageless cable connection with an integrated lag screw. The jaws lock onto 1/8-inch 1x19 cable, while the fitting remains accessible for future re-tensioning.
- Post typeTypical 4x4 wood posts or larger for the direct-post option.
- Material316 stainless steel, available in stainless or black oxide finishes.
- AssemblySwageless jaws install without a hydraulic crimper or swaging tool.
- AdjustmentUse a 7/16-inch wrench to tension and later re-tighten the fitting.
Match the fitting to the cable path
A level run is horizontal. A stair or ramp run needs an articulating fitting that aligns with the slope. Treat the transition between them as a new cable section.
Level Run Kit for Wood Posts
Use this kit between wood termination posts on a horizontal section. Two adjustable level fitting assemblies connect one pre-cut cable strand.
- Included: 2 level fitting assemblies
- Cable: 1 pre-cut 1/8-inch strand
- Application: level sections
Stair Run Kit for Wood Posts
Use this kit for a sloped stair or ramp section. Two articulating stair fitting assemblies pivot to align with the cable angle.
- Included: 2 stair fitting assemblies
- Cable: 1 pre-cut 1/8-inch strand
- Application: stair or ramp sections
Confirm the wood-post structure first
Cable creates tension at the termination posts. Hardware selection should follow the actual structure, attachment path, railing geometry, and local requirements.
Post size
Our direct-post wood kits specify typical 4x4 posts or larger. Confirm that the selected post and mounting details suit the project.
Attachment path
Identify whether the lag enters a wood post directly or must pass through drywall, sheathing, or siding to reach framing.
Run transitions
Mark corners, end posts, openings, and level-to-stair changes. Each termination-to-termination cable path is a separate section.
Local requirements
Confirm railing height, openings, post spacing, fastening, and other requirements with the authority responsible for the project location.
Measure, assemble, then tension
This overview follows our level wood-post kit workflow. Use the complete instructions for the exact kit and finish before installation.
Install the lag screws
Start the hanger bolt by hand, then use a 7/16-inch wrench to seat it according to the product instructions.
Assemble the first cable end
Slide the threaded stud onto the cable, place the jaws with about 1/8 inch of cable exposed, and pull the stud over the jaws until they lock.
Connect the fitting
Thread the cable assembly into the fitting body by hand. Follow the product instructions for minimum thread engagement.
Measure and cut the opposite end
Pull the cable to the opposite fitting, mark it as directed in the kit instructions, make a clean cut, and assemble the second end.
Tension from the middle outward
Hold the cable steady with cable-gripping pliers and turn the fitting with a 7/16-inch wrench. Begin with the middle row and alternate above and below it.
Choose for the actual attachment
The two lag options serve different fastening paths. Select from the product page only after confirming where the lag will terminate.
These product-option descriptions do not replace structural design. Wall finishes are not structural framing.
Our standard choice for attaching directly to a typical 4x4 wood post or larger.
Our option for wall attachments that must pass through drywall, sheathing, or siding to reach internal framing.
Verify post construction, finish thickness, framing location, and the required attachment with the project designer or responsible authority.
Keep the fittings accessible
Wood can shrink or shift as conditions change. That movement may reduce cable tension even when the cable and fitting remain serviceable.
Inspect posts and mounting points
Check for movement, splitting, loose attachments, or other damage before increasing cable tension.
Compare cable rows
Look for noticeable tension differences and confirm that cable spacing remains consistent across the section.
Re-tighten in a balanced order
If the structure is sound, use a 7/16-inch wrench and work from the middle cable outward, alternating above and below.
Common planning questions
Use these answers to organize the project, then confirm measurements, available cable lengths, attachment details, and local requirements before ordering.
Can cable railing attach directly to wood posts?
What cable railing kit do I need for wood posts?
How many wood-post cable railing kits do I need?
Does a cable railing corner start a new section?
What is the difference between the 1.5-inch and 3.5-inch lag screws?
What tool tensions Keuka wood-post fittings?
Can wood-post cable railing be re-tensioned later?
Turn the wood-post plan into a material list.
Draw the complete railing in our project estimator, or browse the level, stair, stainless, and black hardware designed for wood posts.
