Swageless Cable Railing Fittings: No-Crimp Planning Guide
Compare swageless and swaged cable connections, match a no-crimp run kit to wood or metal posts, and calculate a planning quantity for level, stair, or ramp sections.
Match the no-crimp hardware to one cable section
Choose the termination posts and cable path, then enter the cable rows and independent sections. The result updates with the matching kit family and planning quantities.
Level Run Kit (Metal Posts)
Dual-Adjust uses an adjustable level fitting assembly at both ends of every cable strand.
Planning quantity only. Confirm cable lengths, screw or lag options, post conditions, current product instructions, structural design, and applicable requirements before ordering or installing.
The cable is held without permanently crimping a sleeve

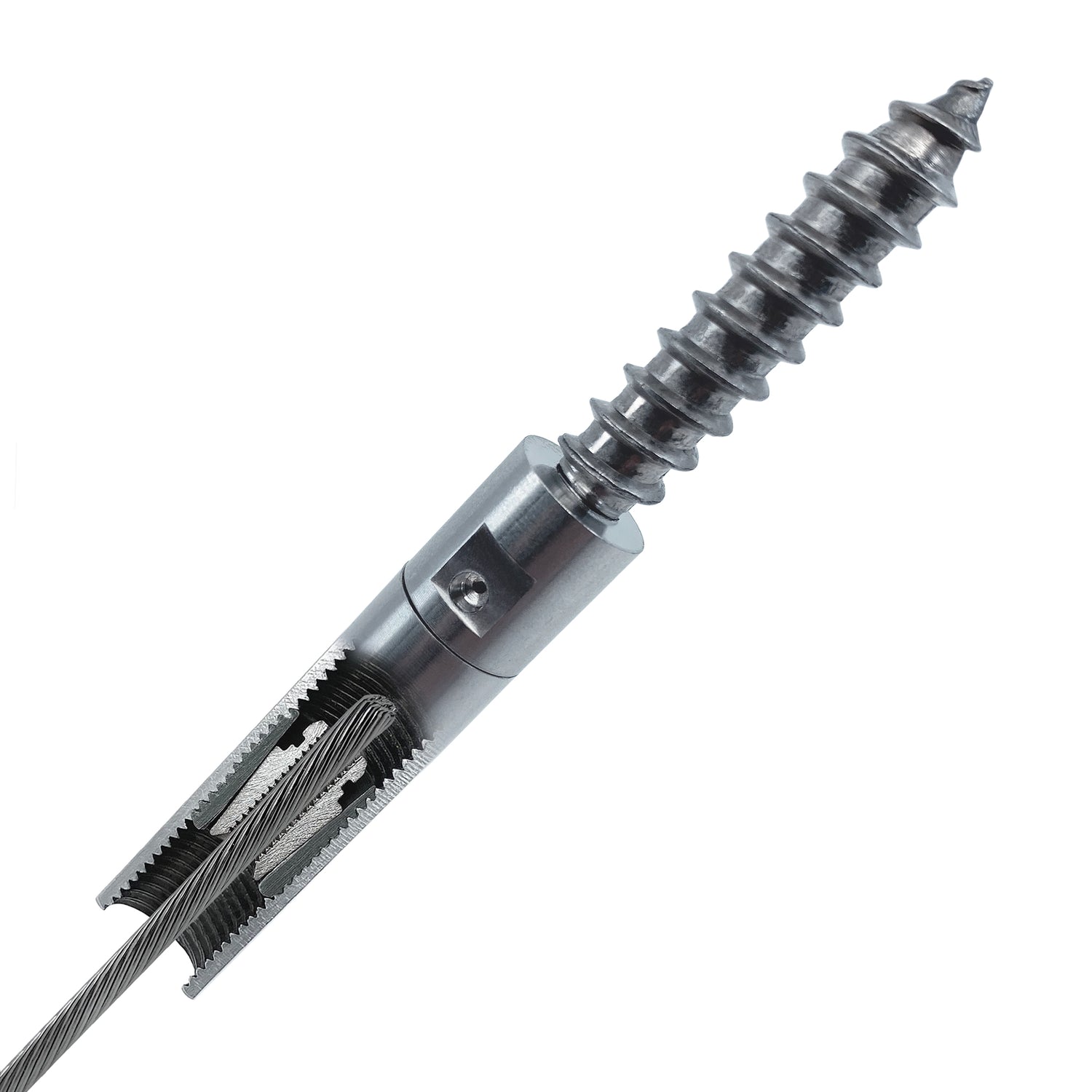

A swageless cable railing fitting grips the cable mechanically rather than requiring a hydraulic swager to deform a sleeve onto the cable. Keuka fittings use an internal stud-and-jaw assembly that can be assembled in the field.
Swageless and swaged fittings secure cable differently
Both methods can be part of a properly designed railing system. The practical difference is how the cable end is attached, adjusted, and serviced.
| Planning point | Keuka swageless fitting | Traditional swaged fitting |
|---|---|---|
| Cable connection | A mechanical stud-and-jaw assembly grips the cable. | A compatible swaging tool permanently compresses a fitting or sleeve onto the cable. |
| Specialized equipment | No swaging machine is required. Normal project-specific cutting, drilling, gripping, and tensioning tools still apply. | Field swaging requires a compatible swager and dies, unless cable assemblies arrive factory swaged. |
| Field changes | The cable end can be assembled after field measurement and a clean cable cut. | Changes to a permanently swaged end can require a new fitting, a new cable end, or a replacement assembly. |
| Future adjustment | The fitting is designed to remain accessible for re-tightening and service. | Adjustment depends on the tensioner design; the swaged cable connection itself is permanent. |
| Best comparison | Compare the complete system, installation instructions, tool requirements, post connections, cable lengths, and service plan rather than judging one fitting in isolation. | |
Swaged systems vary. Review the instructions and engineering information supplied by the manufacturer of the exact system being considered.
Choose by cable path and termination post
Level sections use level fittings. Stair and ramp sections use articulating fittings that pivot to align with the cable angle.
Level Run Kit for Metal Posts
Choose Standard for one adjustable fitting and one Simple Stop, or Dual-Adjust for an adjustable fitting at both cable ends.
View metal-post level kitStair Run Kit for Metal Posts
Two articulating fitting assemblies align with a stair or ramp angle. Select the screw attachment for the metal post.
View metal-post stair kitLevel Run Kit for Wood Posts
Two adjustable level fitting assemblies use lag-style attachments for a horizontal cable section between suitable wood termination points.
View wood-post level kitStair Run Kit for Wood Posts
Two articulating lag fitting assemblies pivot to match a stair or ramp cable path between suitable wood termination points.
View wood-post stair kitPrepare the cable and posts correctly
The swageless connection removes the hydraulic crimping step. The rest of the railing still depends on clean cable preparation, accurate post work, and controlled tension.
Plan the complete cable path before cutting
A fitting method is only one part of the project. Build the parts list around termination points, post material, cable rows, cable lengths, and current installation details.
Separate every section
Count each termination-to-termination cable path. Corners and level-to-stair transitions begin new sections.
Match the posts
Select the kit made for the termination post material and verify the installed post conditions.
Confirm each cable length
Measure the exact section and choose a pre-cut cable length that covers the required path and fitting assembly.
Use current instructions
Confirm attachment options, hole details, tools, fitting assembly, and tensioning sequence before installation.
Questions about no-crimp cable fittings
What does swageless mean in cable railing?
Swageless means the cable fitting does not require a swaging or crimping tool to attach it to the cable. Keuka fittings use a mechanical stud-and-jaw assembly that grips the cable when assembled.
Do swageless cable railing fittings require tools?
Yes. Swageless removes the swaging-machine requirement, not every installation tool. A complete project still needs suitable cable cutting, gripping, drilling, attachment, and tensioning tools specified for the selected fittings and posts.
Can Keuka swageless fittings be adjusted later?
Yes. Keuka adjustable fittings are designed to remain accessible for re-tightening and service. Inspect the cable, posts, attachments, and fitting condition before making an adjustment.
Which swageless kit is used with wood posts?
Use the Level Run Kit for Wood Posts for a horizontal cable section and the Stair Run Kit for Wood Posts for a stair or ramp section. Both use lag-style attachments designed for suitable wood termination points.
Are level and stair cable fittings interchangeable?
No. Level fittings are intended for horizontal cable sections. Stair and ramp sections use articulating fittings that pivot to align with the cable angle.
How many swageless cable railing kits do I need?
Multiply the number of cable rows by the number of independent termination-to-termination sections of the same type. Calculate level and stair sections separately, then confirm lengths and attachment options before ordering.
Does a swageless fitting make the railing code compliant?
No fitting alone determines compliance. Guard design, structural attachments, dimensions, openings, post spacing, cable tension, site conditions, and applicable requirements must be confirmed for the complete project.
Turn the fitting choice into a complete material plan
Draw the railing in our project estimator or browse all four cable railing run kits for level, stair, wood-post, and metal-post sections.
